Explain the fundamental diagram of traffic
The fundamental diagram of traffic is a graphical representation that illustrates the relationship between three key variables in traffic flow: density, flow, and speed. It is a crucial concept in transport engineering and traffic management, as it helps to analyze and predict traffic behavior under various conditions.
Here's a brief explanation of each variable:
Density (k): This is the number of vehicles per unit length of roadway, typically measured in vehicles per mile (vpm) or vehicles per kilometer (vpkm). It represents the degree of congestion on the road.
Flow (q): This is the number of vehicles passing through a specific point on the road per unit time, typically measured in vehicles per hour (vph). It represents the overall throughput or efficiency of a roadway.
Speed (v): This is the average speed of vehicles on the road, typically measured in miles per hour (mph) or kilometers per hour (kph).

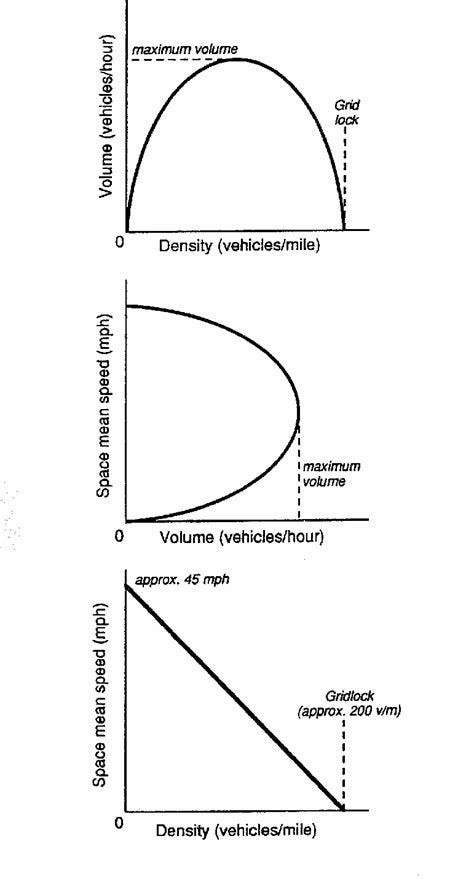

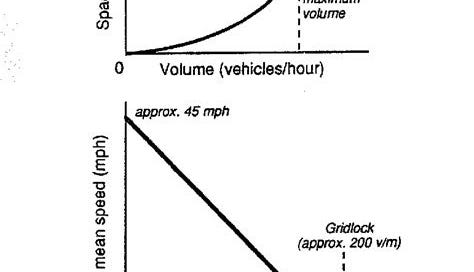

The fundamental diagram of traffic is a scatter plot, with density on the x-axis and flow or speed on the y-axis. The resulting curve can be divided into three distinct regions:
Free flow: In this region, the traffic density is low, allowing vehicles to travel at their desired speeds without being affected by other vehicles. Here, the flow increases linearly with density, and the speed remains relatively constant.
Congested flow: As density increases, the space between vehicles decreases, causing them to slow down and adjust their speed to maintain a safe following distance. In this region, the flow reaches its maximum capacity (the point of maximum throughput), and the speed begins to decrease.
Breakdown or jammed flow: When the density becomes too high, the flow starts to decrease, and vehicles come to a stop or move at very slow speeds. In this region, the road is highly congested, and the speed drops significantly.
The shape of the fundamental diagram may vary depending on factors like roadway geometry, driver behavior, and traffic control measures. Nonetheless, it serves as a valuable tool for understanding traffic dynamics and optimizing traffic systems.
[Whether there are 2 or 3 regions is the subject of debate, ChatGPT has come down on the side of the Germans, who seem to be responsible for the wikipedia article on the subject.]
Following up on my discussion of queueing theory, I asked #GPT4
The Fundamental Diagram of Traffic relates speed flow and density. To what other physical systems besides traffic has the Fundamental Diagram be applied? To what other physical systems could it be applied? Explain and provide evidence.
It replied (edited)
The Fundamental Diagram of Traffic, which relates speed, flow, and density, has been applied to various physical systems besides traffic. These systems share similarities with traffic in that they involve the movement and interaction of discrete elements within a limited space. Here are some examples of other physical systems where the Fundamental Diagram has been applied, as well as potential applications:
[I have sorted them from the most to least obvious, in my mind at least, and deleted some things which were essentially duplicates].
Pedestrian dynamics: The Fundamental Diagram has been applied to pedestrian dynamics to understand the flow and congestion in crowded spaces, such as train stations, shopping centers, and public events. Research has shown that pedestrian movement exhibits similar behavior to traffic flow in terms of density, speed, and flow relationships. Understanding these relationships helps urban planners design safer and more efficient pedestrian infrastructure.
Urban planning and public transportation: The Fundamental Diagram can be applied to the design of public transportation systems, such as buses, trams, and subways. By understanding the relationships between passenger density, vehicle speed, and the flow of passengers through stations and vehicles, planners can optimize routes, schedules, and infrastructure to minimize congestion and enhance overall system performance.
Queueing theory: The Fundamental Diagram can be applied to queuing systems, such as customers waiting in line at a grocery store or call center. Understanding the relationships between the number of customers (density), service rate (speed), and customer throughput (flow) can help businesses optimize staffing levels and service strategies to minimize wait times and improve customer satisfaction.
Supply chain and logistics: The Fundamental Diagram could be applied to the flow of goods within a supply chain, taking into account factors like the density of items in storage or transportation, the speed of processing, and the flow rate of items through the system. This could help businesses optimize their supply chain management, reduce bottlenecks, and improve overall efficiency.
Swarm robotics: The Fundamental Diagram can be applied to the study of swarm robotics, where multiple robots collaborate to accomplish tasks. By understanding the relationships between robot density, speed, and task efficiency, researchers can optimize swarm behavior for improved performance and scalability.
Energy systems: The Fundamental Diagram can be applied to the study of energy distribution systems, such as electricity grids or natural gas networks. By understanding the relationships between the density of energy sources, the speed of energy transmission, and the flow of energy through the system, engineers can optimize the design and operation of energy infrastructure to ensure reliable, efficient, and sustainable energy supply.
Finance: The Fundamental Diagram can be applied to the analysis of financial markets and the flow of capital within economies. By examining the relationships between the density of market participants, the speed of transactions, and the flow of capital, researchers can gain insights into market dynamics, inform regulatory policies, and develop strategies for mitigating risks and optimizing returns. [Not exactly the same as my discussion of Quantity Theory of Money and Fundamental Equation of Traffic, but related]
Communications: The Fundamental Diagram can be applied to the study of communication systems, such as the flow of information through social networks or the transmission of signals in telecommunications networks. By analyzing the relationships between the density of network nodes, the speed of information propagation, and the flow of information, researchers can optimize network design and communication strategies for improved performance and efficiency.
Internet traffic: The Fundamental Diagram has also been applied to understand the flow of data packets within computer networks. Just as with vehicular traffic, data packets can experience congestion, affecting the speed and flow of information. The relationships between packet density, speed, and flow can help network engineers optimize network design and traffic management.
Fluid dynamics: The Fundamental Diagram can be applied to the study of fluid flow in various settings, such as the flow of liquids and gases through pipes or porous media. By analyzing the relationships between fluid density, velocity, and flow rate, engineers can optimize fluid transport systems and improve the efficiency of processes like oil extraction, water distribution, or air conditioning.
Cellular transportation systems: The Fundamental Diagram could potentially be applied to study intracellular transport systems. Cells contain various types of transportation systems, such as the cytoskeleton, which transport molecules and organelles throughout the cell. Understanding the relationships between the density, speed, and flow of these transportation systems could provide insights into cellular function and inform the development of targeted drug delivery systems.
Animal migration patterns: The Fundamental Diagram could be applied to study the movement and interaction of animal groups, such as flocks of birds or schools of fish. By understanding the relationships between density, speed, and flow, researchers could gain insights into animal behavior, predator-prey dynamics, and the impact of human activities on ecosystems.
Social systems: The Fundamental Diagram could be applied to the study of social interactions, particularly in crowded settings. For example, researchers could analyze the relationships between the density of individuals in a given space, the speed of social interactions, and the flow of information or emotional contagion. This could provide insights into group dynamics, social behavior, and the impact of physical environments on interpersonal relationships.
Epidemiology: The Fundamental Diagram can be applied to model the spread of infectious diseases within a population. By considering factors such as population density, contact rates (speed), and the flow of infection (number of new cases), researchers can better understand disease transmission dynamics, inform public health policies, and develop effective strategies for disease control and prevention.
Ecology and animal behavior: The Fundamental Diagram can be applied to the study of foraging behavior in animals, considering factors like the density of resources, the speed at which animals can locate and consume resources, and the flow of resources through the ecosystem. Understanding these relationships can provide insights into the sustainability of ecosystems and inform conservation strategies.
Can we apply the fundamental diagram of traffic to ideas, where flow is the analogy of productivity, and density is the number of ideas available?
Yes, the fundamental diagram of traffic can be adapted as a conceptual framework for understanding the relationship between the number of ideas available (density) and productivity (flow) in various contexts, such as creative processes, organizational performance, or personal efficiency.
In this adapted model, density represents the number of ideas or concepts available within a given context, while flow represents the rate at which these ideas are transformed into productive output, such as solutions, innovations, or completed tasks.
The three regions of the adapted fundamental diagram could be interpreted as follows:
Free flow: In this region, the number of ideas is low, and individuals or teams can easily process and implement them without being overwhelmed. Productivity increases linearly with the number of ideas, and the rate of implementation remains relatively constant.
Congested flow: As the number of ideas increases, individuals or teams may struggle to keep up with the influx of new concepts, leading to a slowdown in productivity. In this region, productivity reaches its maximum capacity, and the rate of idea implementation begins to decrease.
Breakdown or jammed flow: When the density of ideas becomes too high, productivity starts to decline as individuals or teams become overwhelmed, unable to process or act on the abundance of concepts. In this region, productivity drops significantly, and the rate of idea implementation decreases substantially.
While this adapted model can serve as a useful conceptual framework for understanding the relationship between idea density and productivity, it is important to note that the dynamics of ideas and creativity are inherently complex and influenced by many factors, such as individual cognitive abilities, team dynamics, organizational culture, and environmental conditions. As such, the adapted fundamental diagram may not capture all aspects of the relationship between idea density and productivity, but it can still provide valuable insights and guide decision-making in various contexts.
Is there any evidence that people or organisations can get less productive when they are exposed to too many ideas? Why would this be?
Yes, there is evidence that people or organizations can become less productive when exposed to too many ideas. This phenomenon is often referred to as "information overload" or "choice overload." There are several reasons why an excess of ideas may lead to reduced productivity:
Cognitive overload: The human brain has limited cognitive resources, and processing a large number of ideas or information can overwhelm these resources. This can lead to decision fatigue, reduced focus, and difficulty in prioritizing tasks or ideas, ultimately resulting in lower productivity.
Paralysis by analysis: When faced with too many ideas, individuals or organizations may spend an excessive amount of time evaluating and analyzing each option, which can lead to indecision or delayed action. This phenomenon, known as "analysis paralysis," can result in decreased productivity as more time is spent on deliberation rather than aimplementation.
Diminishing returns: As the number of ideas increases, the potential benefits of each additional idea may decrease. This concept, known as the law of diminishing returns, suggests that there is an optimal point at which adding more ideas will not result in significant increases in productivity, and may even lead to decreased productivity as resources are spread too thin.
Increased complexity: A larger number of ideas can lead to increased complexity in projects, organizational structures, or systems. This increased complexity can create confusion, slow down decision-making, and hinder effective communication, ultimately reducing productivity.
Reduced focus and commitment: When people or organizations are exposed to too many ideas, they may struggle to maintain focus on a single idea or project, leading to frequent shifts in direction or priorities. This lack of commitment can result in incomplete tasks or projects and reduced productivity.
To counteract these potential negative effects of idea overload, individuals and organizations can adopt strategies such as prioritizing and filtering ideas, setting clear goals and objectives, and fostering an environment that encourages focus and commitment. By striking a balance between idea generation and effective implementation, it is possible to maintain productivity while still promoting innovation and creativity.
